The Story
Part Condition :- Refurbished Original / Pulled Original / Working Original / Import
Part Warranty :- 30 Days Replacement Warranty From Billing Date.
The "Controller & Engine" of Printer Quality

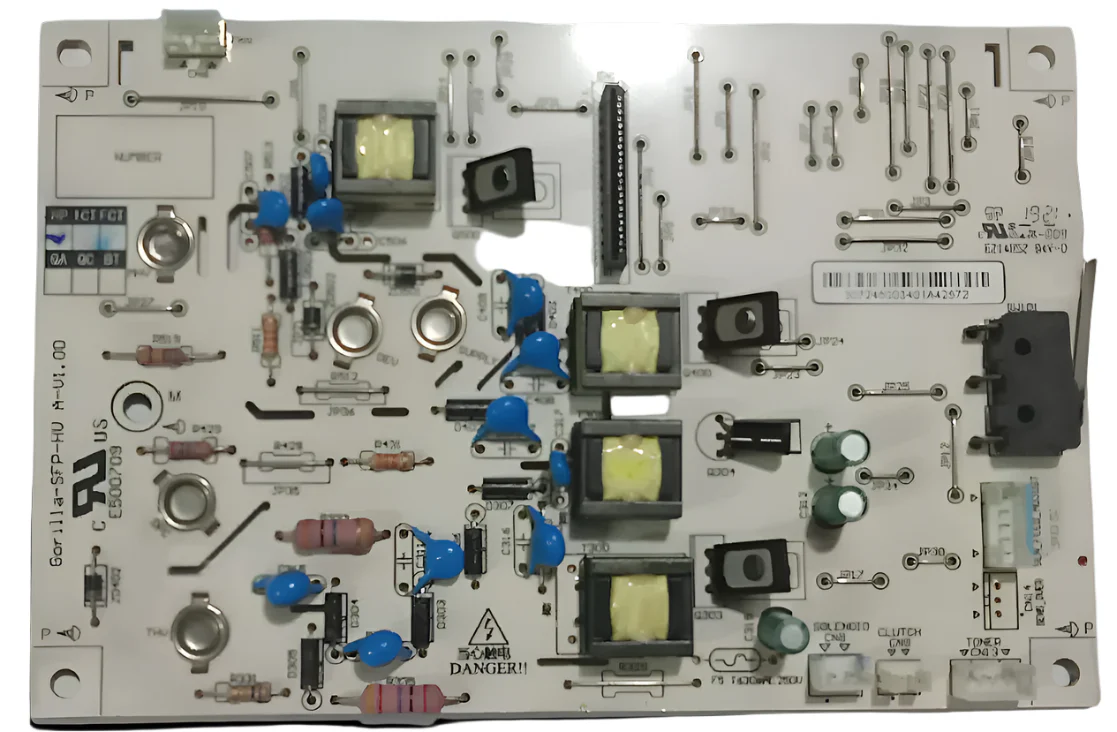

Think of the High Voltage Power Supply (commonly known as the HVPS Board or High Voltage Power Card) as the system that controls the static electricity inside your laser printer.
While the main power board turns the printer on, the HVPS Power Board Supply generates the intense electrical charges needed to pull toner powder onto the drum and melt it perfectly onto the paper. In many modern printer models, this system is tightly integrated with or managed by the Engine Control Unit or DC Control system to synchronize the entire printing process.
What It Does (In Simple Words)
A standard wall outlet doesn't give enough voltage to generate static electricity. The High Voltage Power Supply / Charging Board boosts that electricity to thousands of volts safely inside the machine to make printing possible.
|
Step |
What It Safely Does |
|
1. Creates Static Charge |
The Charging Board creates a static charge on the drum so it can attract toner powder. |
|
2. Controls the Laser & Toner |
It manages the precise voltage required for transferring the image from the cartridge to the paper. |
|
3. Regulates Mechanical Timing |
Working closely with the DC Power Supply and DC Control, it tells the rollers exactly when to move. |
|
4. Runs the Engine |
It acts as the core of the High Voltage Power Supply PCB ASSY, powering the heating elements and internal lasers. |
Common Signs of a Faulty HVPS Board or Engine Control Unit
Agar aapke printer me power aa rahi hai par prints kharab aa rahe hain, toh ho sakta hai aapka HVPS Card ya Engine Control Unit damage ho gaya ho. Customers usually look for a replacement when facing these issues:
- Blank Pages or Faint Prints: The printer runs, motors move, but the pages come out completely white or extremely light. This happens when the High Voltage Power Card fails to charge the toner.
- Repetitive Error Codes (Print Engine Errors): The printer screen shows "Engine Error," "Service Error," or "DC Controller Error," and the machine locks up.
- Smudged Toner or Ghost Images: The text rubs off the paper easily because the HVPS Power Board Supply is not sending enough voltage to the heating element to fuse the ink.
- Solid Black Pages: If the voltage regulation fails completely, it can dump toner all over the page, resulting in pitch-black sheets.
Critical Safety Warning for Customers:
The High Voltage Power Supply generates thousands of volts of static electricity to operate the laser and toner systems. NEVER touch this board while the printer is plugged in. Even after turning the machine off, wait for the residual charge to dissipate. For safety and performance, always replace the entire High Voltage Power Supply PCB ASSY as a single unit or get it installed by a professional.
Why Buy Our Tested Printer Components?
We stock 100% certified, premium-grade Engine Control Unit boards, DC Control cards, and HVPS Boards. Replacing a weak charging board instantly fixes light print issues, background fogging, and frequent engine errors, bringing your printer back to factory-quality crispness
